Tipper Body
Bigger on capacity and earnings
At JCBL, we are proud to be pioneers in the next generation of tipper technology. We have continued to develop and design the same, bringing a new level of sophistication to the industry. We, as one of the top tipper manufacturers in India, manufacture a range of tipper bodies suitable for mounting on any industrial vehicle from 6 Cu.M to 22 Cu.M. Our state-of-the-art production facility based out of Chennai has integrated operations right from designing to manufacturing of the final product. Our manufacturing facility has the capacity to roll out over 2400 tippers and 400 tip-trailers per annum, which makes us a leader in the tipper body fabrication companies in India.
Our world-class tippers have received a resounding response with major installations on Volvo, Scania, Ashok Leyland, Swaraj Mazda and much more. Being top-notch tipper body manufacturers in India, we also understand the need for a dedicated service network spanning the length and breadth of the country. Our team of dedicated engineers and technicians ensure that your moving machines are up and running at all times through our spare parts service designed to provide a fast and effective response minimizing breakdown time using JCBL’s existing service network adequately spread in all major cities of India.
When coupled with a suitable prime mover. Weights mentioned are general & actual may vary from model to model.

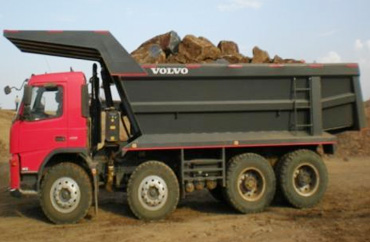

Front End Rock Body Deep Mining Tipper
Volumetric Capacity | 18.7 Cu.M |
Suitable Chassis | VOLVO, BENZ, SCANIA 8x4 |
Material | Subframe Long Member: 8 mm ST52 |
Floor Sheet: 10 mm Hardox 400 or Equivalent | |
Side Board Sheet: 8 mm Hardox 400 or Equivalent | |
Head Board Sheet: 5 mm Hardox 400 or Equivalent | |
Canopy: 3 mm ST52 | |
Payload | Mining Application- OB, Rocks, Hard Coals, Ores etc. |
Tipping Angle | 54 Degree |
Scow Angle | 9 Degree |
Hydraulic Tipping Kit | Edbro CS150, Hyva 169 or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting |
Front End Rock Body Tipper
Volumetric Capacity | 14 Cu.M |
Suitable Chassis | AL U Truck 6x4, TATA 6x4 |
Material | Subframe Long Member: 6 mm BSK46 |
Floor Sheet: 8mm Hardox 400 or Equivalent | |
Side Board Sheet: 6 mm Hardox 400 or Equivalent | |
Head Board Sheet: 6 mm Hardox 400 or Equivalent | |
Canopy: 4 mm ST52 | |
Payload | Mining Application- OB, Rocks, Hard Coals, Ores etc. |
Tipping Angle | 54 Degree |
Scow Angle | 9 Degree |
Hydraulic Tipping Kit | Wipro FE 129 or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting |
Front End Box Ribless Body Tipper
Volumetric Capacity | 18 Cu.M and 22 Cu.M |
Suitable Chassis | AL, TATA, Bharat Benz 8x4 |
Material | Subframe Long Member: 6 mm BSK |
Floor Sheet: 6 mm BSK | |
Side Board Sheet: 4 mm ST52 | |
Head Board and Tail Door Sheet: 4 mm ST52 | |
Canopy: 3 mm IS2062 | |
Payload | On Road Application, Sand, Gravel, Coal etc. |
Tipping Angle | 49 Degree |
Hydraulic Tipping Kit | FC149 WIPRO or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting |
Front End Box Body Tipper- 20 - 24 Cu.M Volumetric Capacity
Suitable Chassis | 3718 – 10X2 |
Material | Subframe Long Member: 6 mm BSK |
Floor Sheet: 6 mm BSK | |
Side Board Sheet: 4 mm ST52 | |
Head Board and Tail Door Sheet: 4 mm ST52 | |
Canopy: 3 mm IS2062 | |
Payload | On Road Application, Sand, Gravel etc. |
Tipping Angle | 42 Degree |
Hydraulic Tipping Kit | FE169 WIPRO or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting |
Front End Box Body Tipper- 18 - 22 Cu.M Volumetric Capacity
Suitable Chassis | 3123 – 8x4 |
Material | Subframe Long Member : 6 mm BSK |
Floor Sheet: 6 mm BSK | |
Side Board Sheet: 4 mm ST52 | |
Head Board and Tail Door Sheet: 4 mm ST52 | |
Canopy: 3 mm IS2062 | |
Payload | On Road Application, Sand, Gravel etc. |
Tipping Angle | 47 Degree |
Hydraulic Tipping Kit | FE169 WIPRO or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting |
Front End Box Body Tipper - 12 to 20 Cu.M Volumetric Capacity
Suitable Chassis | AL, TATA, Bharat Benz, Mahindra 2518- 6x4 |
Material | Subframe Long Member : 5 mm BSK |
Floor Sheet: 6 mm BSK | |
Side Board Sheet: 4 mm ST52 | |
Head Board and Tail Door Sheet: 4 mm ST52 | |
Canopy: 3 mm IS2062 | |
Payload | On Road Application, Sand, Gravel etc. |
Tipping Angle | 49 Degree |
Hydraulic Tipping Kit | FE129 WIPRO or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat Painting |
Front End Box Body Tipper - 10.5 Cu.M Volumetric Capacity
Suitable Chassis | AL, TATA, Bharat Benz 1616- 4x2 |
Material | Subframe Long Member : 6 mm BSK |
Floor Sheet: 6 mm BSK | |
Side Board Sheet: 4 mm ST52 | |
Head Board and Tail Door Sheet: 4 mm ST52 | |
Canopy: 3 mm IS2062 | |
Payload | On Road application, Sand, Gravel etc. |
Tipping Angle | 49 Degree |
Hydraulic Tipping Kit | FE110 or FC110 WIPRO or Equivalent |
Painting | Shot Blasting as per Std ASTM B117, Primer and PU Top Coat painting. |
Front End Scow End Ribless Body Tipper
Volumetric Capacity | 7 Cu.M |
Suitable Chassis | AL, TATA, Bharat Benz 1616- 4x2 |
Material | Subframe Long Member: 6 mm BSK |
Floor Sheet: 8 mm Hardox | |
Side Board Sheet: 5 mm Hardox | |
Head Board Sheet: 5 mm Hardox | |
Canopy: 4 mm IS2062 | |
Payload | Quarry Application etc. |
Tipping Angle | 49 Degree |
Hydraulic Tipping Kit | Cylinder WIPRO make |
Painting | Shot Blasting as per Standard ASTM B117, Primer and PU Top Coat Painting |

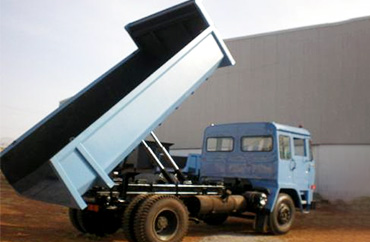

Under Body Tipper- Product Developed for Defence Applications
Specifications:
- Chassis: AL 1616CTTP
- Body Type: Tipper Body
- Capacity: 6.5 Cu.M
- Application: Construction Materials
- Floor Sheet: 5 mm thick ST52
- Side, Rear and Front: 4 mm thick ST52
- Hydraulic: 2 Acting Wipro Cylinders-2 Nos
